Active electrodes

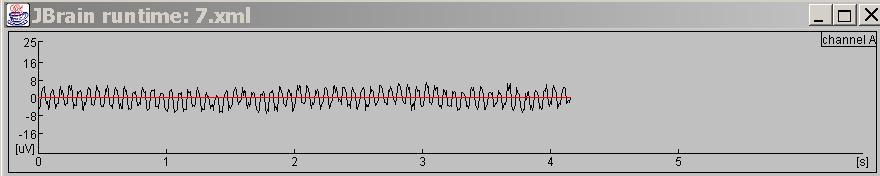

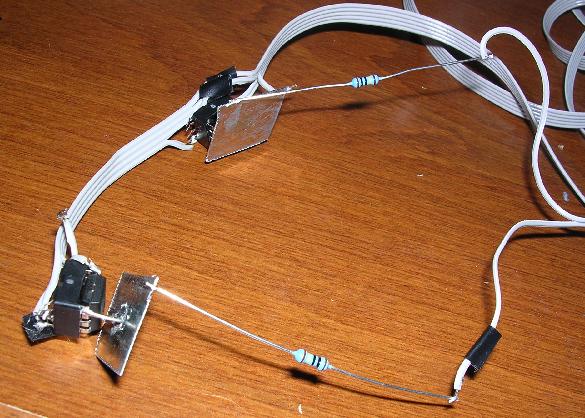

First prototype of active electrodes

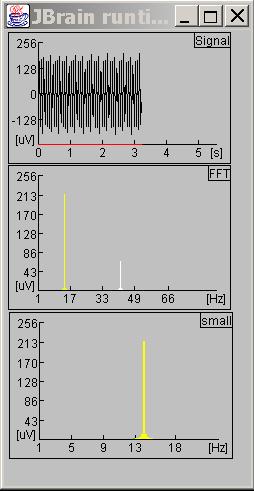

Comparison of active/passive electrodes

	Active electrodes (unshielded cables)	Passive electrodes (shielded cables)

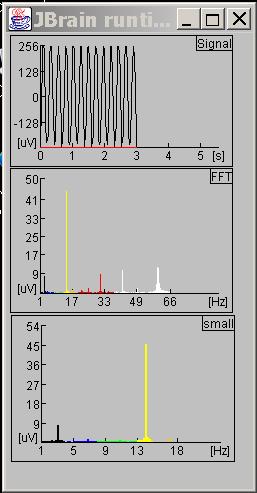

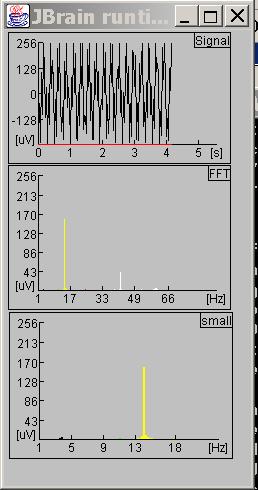

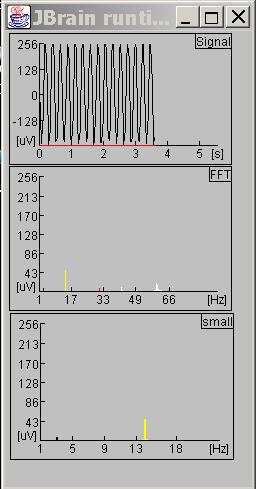

Calibration signal with 1M resistor

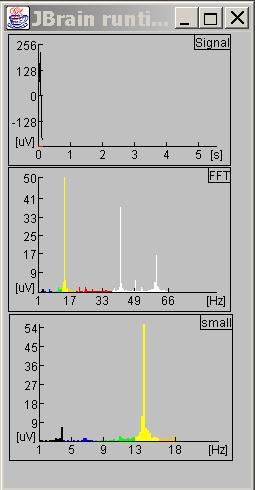

Calibration signal with 1M resistor - lower range

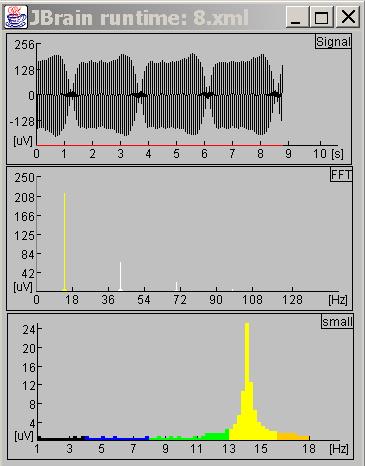

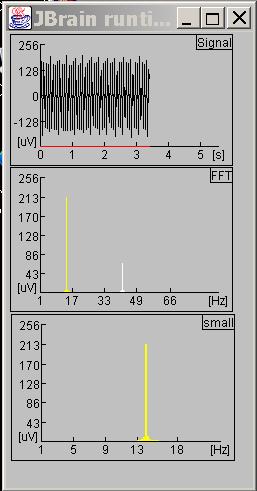

Calibration signal with no resistors

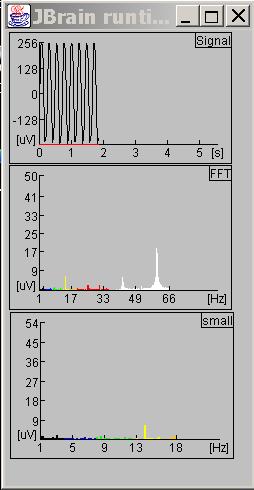

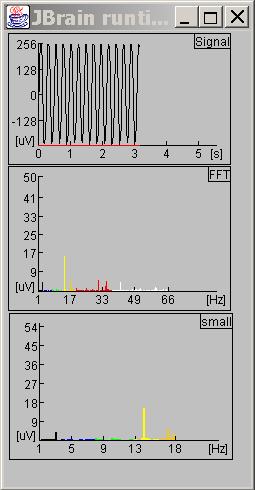

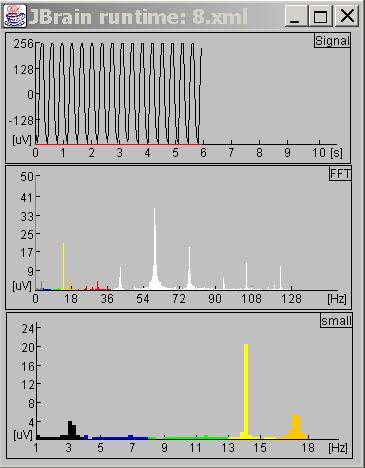

Calibration signal with 10M resistor

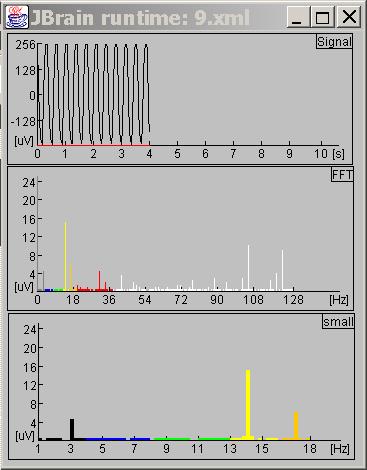

Calibration signal with 10M resistor, wide spectrum

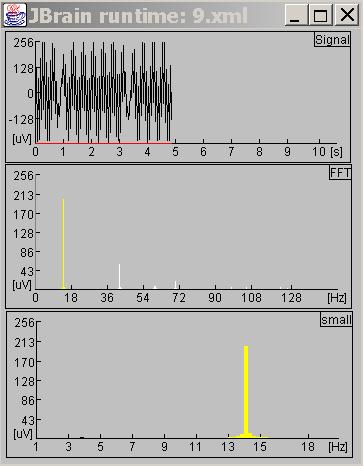

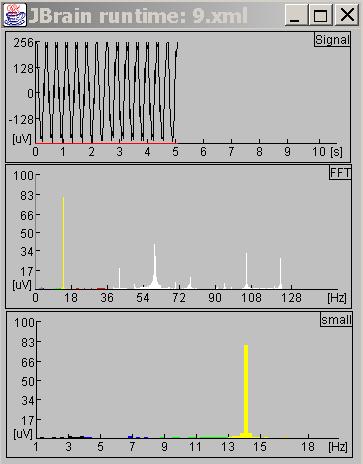

Calibration signal with 200k resistor, wide spectrum

NEXT DAY

	Active electrodes (unshielded cables)	Recorded signal saved as sound file mono 256Hz (micorsoft wav format)

Calibration signal with no resistors		active_noR.wav

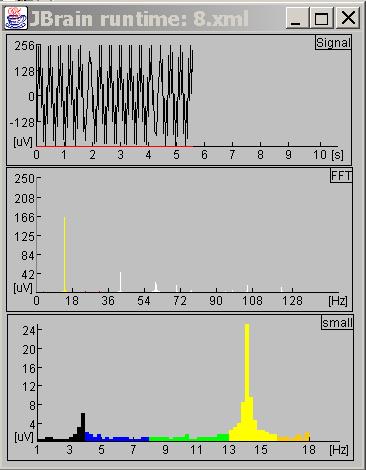

Calibration signal with 1M resistor		active_1M.wav
Calibration signal with 10M resistor		active_10M.wav
Calibration signal with two 1M resistors		active_two1M.wav

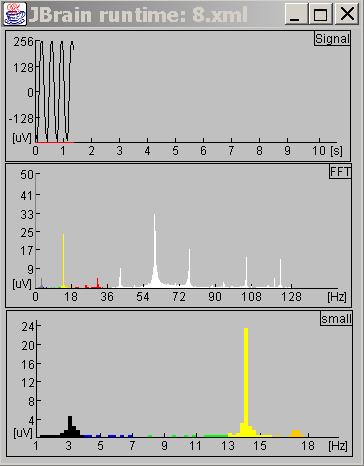

Calibration signal with two 10M resistors		active_two10M.wav

NEXT DAY

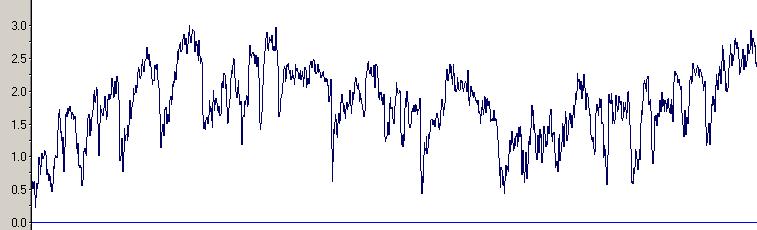

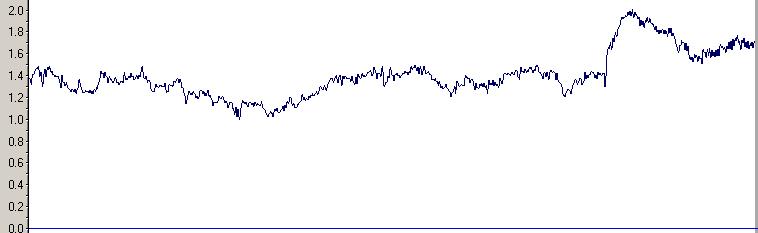

Here are real eeg signals from my forehead.

Passive (original wav)

Active (original wav)

NEXT DAY

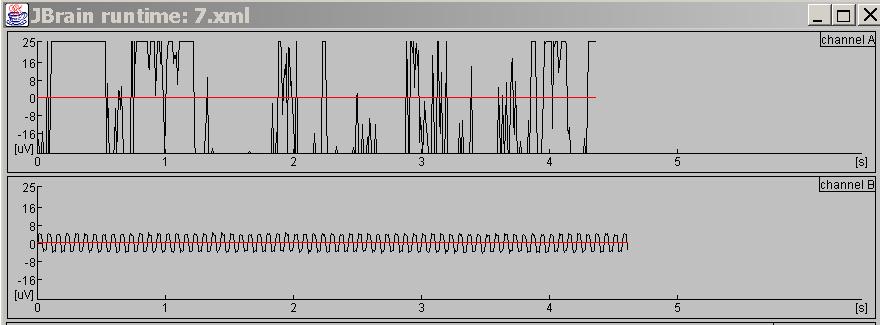

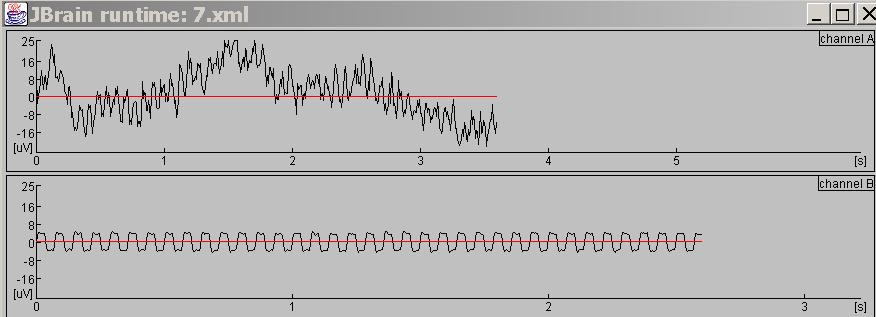

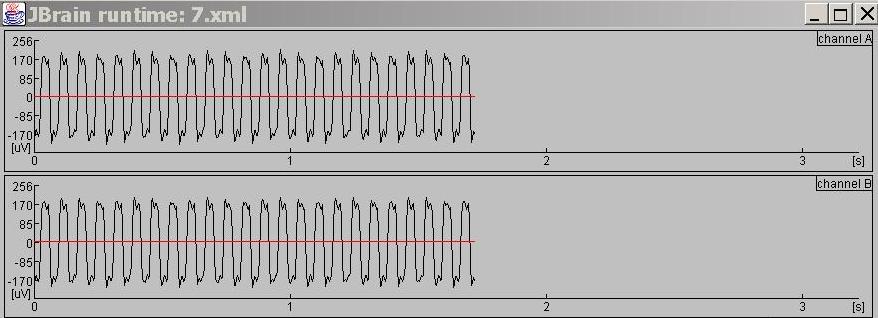

Active and passive electrodes connected both to the same calibration signal

Only active electrodes connected to calibration signal but with 440 ohm resistor between electrodes

Active and passive electrodes connected both to calibration signal but with 440 ohm resistor between electrodes

Again the same circuit but different result: active and passive electrodes connected both to calibration signal but with 440 ohm resistor between electrodes. The calibration signal wires are soldered to active electrodes. Passive electrodes are put on active (without soldering).
